This is where we started, with mud daubing
wasp nests and the mice.
And this is where we ended.
5200 gallons of water storage, insulated and sealed
off from the elements and critters.
This is our own personal HCBR project in our very own back yard. Not long after we bought this house we discovered that a water storage tank was a good thing to have. After some research we determined to build a multi-use building that would incorporate the well equipment with a large storage capacity. We just didn’t want to have a tank sitting out on the ground so a well house building was the perfect solution; which grew to accommodate other needs; a potting shed, garden tool and supply storage, a HCBR tool and supply room to clear out the garage, and then an open covered space for the kayaks, riding mower and other tools and equipment. Yes, the perfect building to house, organize and store a lot of stuff.
![20200804_133940 20200804_133940](https://hillcountrybuildingandrenovation.com/wp-content/uploads/2021/03/20200804_133940-scaled-500x400.jpg)
After weighing the options,
A bigger tank seemed to be better.
5200 Gallons
![20200812_090317 20200812_090317](https://hillcountrybuildingandrenovation.com/wp-content/uploads/2021/03/20200812_090317-scaled-500x400.jpg)

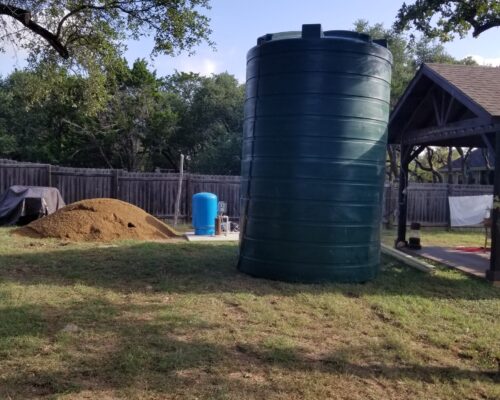

Got er done, but it wasn’t easy :-/
![20200814_105159 20200814_105159](https://hillcountrybuildingandrenovation.com/wp-content/uploads/2021/03/20200814_105159-scaled-500x400.jpg)

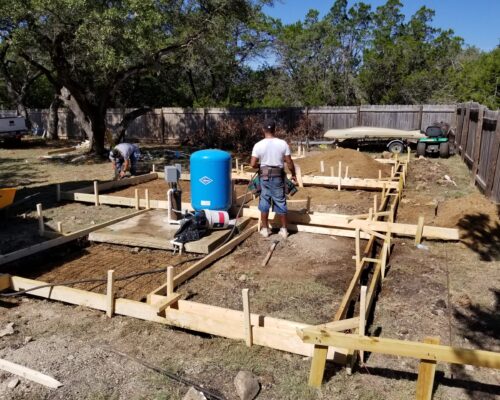

Due to the sloping elevation and the position of the well head,
forming for concrete curbs and slabs was a little tricky.
![20200814_110304 20200814_110304](https://hillcountrybuildingandrenovation.com/wp-content/uploads/2021/03/20200814_110304-scaled-500x400.jpg)

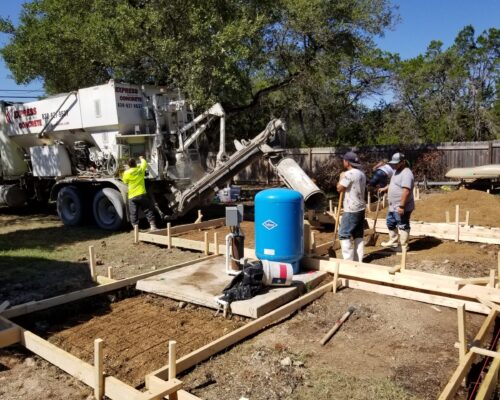

We used Express Metered Concrete Co. which mixes up
the mud on the spot and you only pay for what you use.
Pretty good deal for small jobs under 10 yards. We used 6.
![20200814_132217 20200814_132217](https://hillcountrybuildingandrenovation.com/wp-content/uploads/2021/03/20200814_132217-scaled-500x400.jpg)

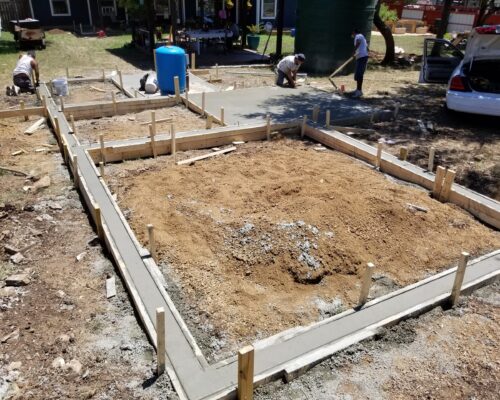

As you can see, we didn’t pour a slab in every spot by design. For example, we wanted to have crushed granite under the tank so it could settle. The potting shed and covered storage area were also planned for crushed granite which is an excellent economic no mud surface that packs hard.
A little video description helps to see the larger picture.
![20200817_091145 20200817_091145](https://hillcountrybuildingandrenovation.com/wp-content/uploads/2021/03/20200817_091145-scaled-500x400.jpg)

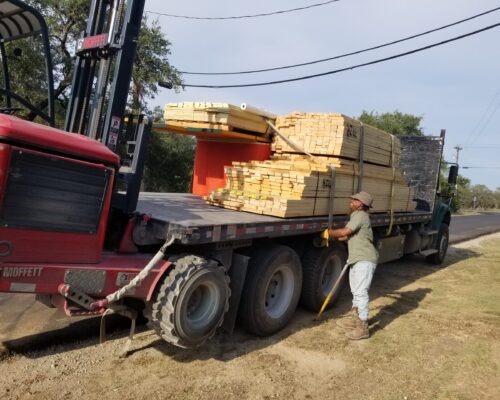

A whole truck load of lumber and OBS Ply to get it framed up.
Good thing this took place before lumber went sky high.
![20200817_162227 20200817_162227](https://hillcountrybuildingandrenovation.com/wp-content/uploads/2021/03/20200817_162227-scaled-500x800.jpg)

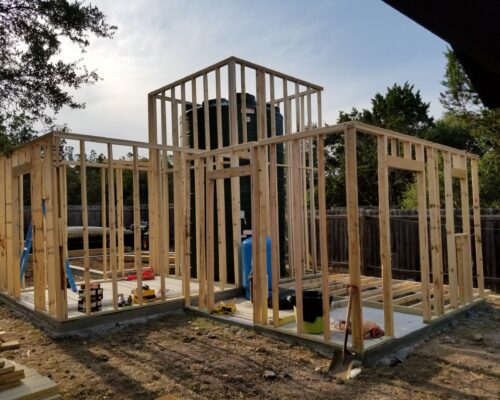

There are certain advantages to building around the tank.
![20200817_182310 20200817_182310](https://hillcountrybuildingandrenovation.com/wp-content/uploads/2021/03/20200817_182310-scaled-500x400.jpg)
Now it is starting to take shape.
![20200825_185742 20200825_185742](https://hillcountrybuildingandrenovation.com/wp-content/uploads/2021/03/20200825_185742-scaled-500x400.jpg)

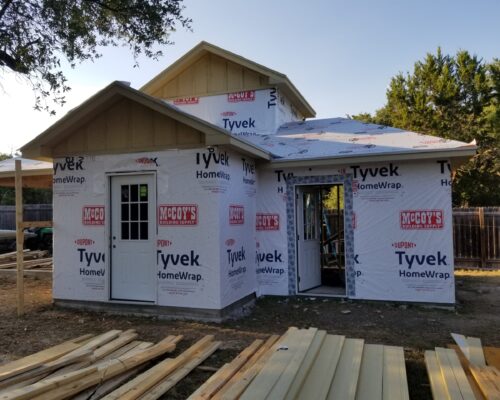

With the synthetic roofing underlayment and exterior walls
wrapped with Tyvek, she’s all sealed up and weather proofed.
Ready for a real Texas storm to roll in.
![20200826_183614 20200826_183614](https://hillcountrybuildingandrenovation.com/wp-content/uploads/2021/03/20200826_183614-scaled-500x400.jpg)
![20201017_110332 20201017_110332](https://hillcountrybuildingandrenovation.com/wp-content/uploads/2021/03/20201017_110332-scaled-500x400.jpg)
Here in the back is the open “Potting Shed” area with the concrete curb and crushed granite floor covering. Perfect for an out door work space.
I think I scored some points for this well house feature.
With the siding and trim completed, a little color on the doors start
the color scheme. This developing color mixture is a specialty of
my better half who I have come to greatly trust through the years
of fix up projects we have worked on and completed together.
We always have an ongoing project or two
no matter where we live.
![20201017_093103 20201017_093103](https://hillcountrybuildingandrenovation.com/wp-content/uploads/2021/03/20201017_093103-scaled-500x400.jpg)

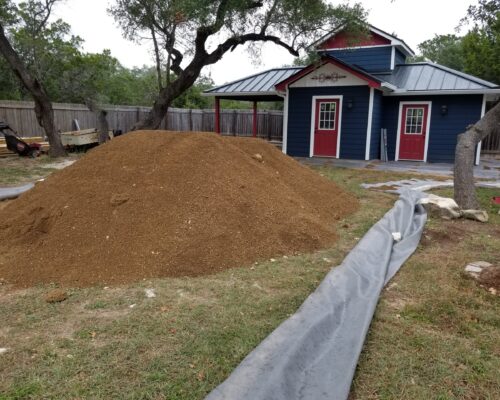

Now with the painting completed the crushed granite is brought in for ground cover with fabric underneath to help keep the weeds out.
![20201017_142518 20201017_142518](https://hillcountrybuildingandrenovation.com/wp-content/uploads/2021/03/20201017_142518-scaled-500x400.jpg)

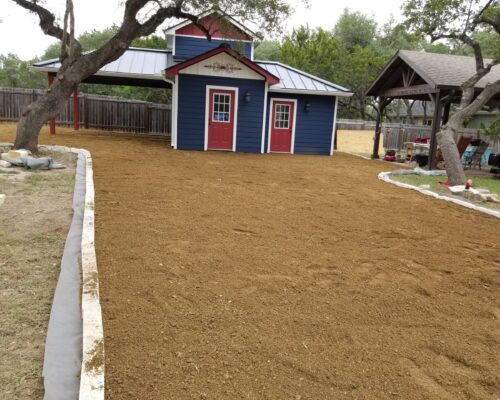

Now, you have got to have some rock borders
to keep everything contained.
![20201114_123635 20201114_123635](https://hillcountrybuildingandrenovation.com/wp-content/uploads/2021/05/20201114_123635-scaled-500x400.jpg)

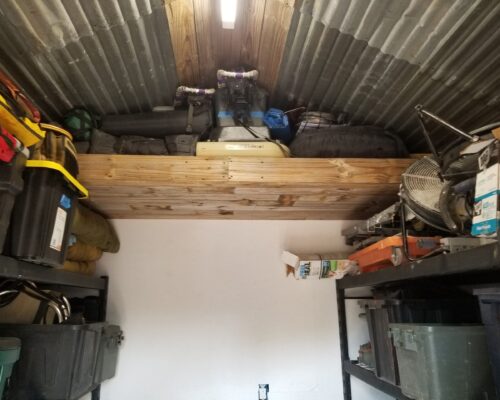

In the inside of the tool room we insulated the walls and ceiling
and hung plywood on the walls, then painted white. On the ceiling we
used some re-purposed corrugated metal we salvaged from
a large lake house project last year. In addition, we also used some
re-purposed fencing boards when we replaced our fence.
A lot of re-purposing going on around here.
Tools inside, and tools outside. This multipurpose building in our back yard really
adds to the Hill Country lifestyle where there seems be just not quite enough space to house the necessities of an active life.
